項目背景
隨著全球新能源行業的迅猛發展，鋰電池生產已成為實現全球零碳未來的關鍵一環。在生產過程中，安全至關重要，尤其是在模切和焊接等工藝中會產生大量易燃易爆的粉塵。如果這些粉塵得不到有效處理，將給整個車間帶來巨大的爆炸風險。
東莞匯樂技術股份有限公司（以下簡稱“匯樂”）長期致力于工業除塵防爆技術的開發，作為一線鋰電池生產商的長期合作伙伴，匯樂在鋰電池產線積累了豐富的經驗。迄今為止，匯樂已在全球范圍內為混料、壓延、分切、模切、疊片、繞卷、母線焊接、激光打標等電池生產工藝提供了超過4萬套設備，其中包括中央集塵與防爆系統，以及針對鋰電工況定制化的集塵器和壓料機。
Project Background
As the global new energy industry rapidly develops, lithium battery production has become a key element in achieving a zero-carbon future. Safety is paramount in the production process, especially during cutting and welding operations, which generate large amounts of flammable and explosive dust. If not effectively managed, this dust poses a significant explosion risk to the entire workshop.
Villo has long been committed to developing industrial dust collection and explosion protection technology. As a long-term partner of leading lithium battery manufacturers, Villo has accumulated extensive experience in lithium battery production lines. To date, Villo has provided over 40,000 sets of equipment worldwide for processes including mixing, calendering, slitting, cutting, stacking, winding, busbar welding, and laser marking. These solutions include central dust collection and explosion-proof systems, as well as customized dust collectors and waste compactors.
項目需求
某大型歐洲電池廠希望改善其激光模切車間的廢料收集設備，以減少粉塵殘留，降低燃爆風險，同時便于處理廢料，節省人力成本。
1.原有設備對廢料壓縮不充分，廢料松散，難以處理；
2.原有廢料收集設備框體內有比較多粉塵殘留，若處理不及時，會有較高安全風險；
3.需要更智能化、易于操作以及維護的設備，以降低勞動強度以及減少生產停機清理時間；
4.設備需要具備權威機構的CE (ATEX) 認證以符合當?shù)?歐盟) 規定。
Project Requirements
A large European battery manufacturer sought to improve its laser notching workshop's waste collection equipment to reduce dust residue, minimize explosion risks, and facilitate waste handling while reducing labor costs.
To comprehensively address the client's issues, Villo proactively responded, conducting multiple on-site visits and engaging in detailed discussions with on-site operators and workshop managers. Through repeated dialogue and exploration, the core needs of the client became clear:
1.Insufficient compression of waste by existing equipment, resulting in large and loose,? ?waste blocks, which are difficult to handle.?
2.The existing waste collection equipment tends to accumulate a significant amount of dust inside the frame, posing a high safe risk if not properly handled.
3.Complex equipment operation and prolong maintenance, leading to high labor costs and production downtime for cleaning.
4.The equipment must be certified with CE (ATEX) by an authoritative organization to comply with local (EU) regulations.
結合車間現場的實際情況和客戶的核心訴求，匯樂通過其專利高效壓料機，為客戶設計了一套高效廢料收集方案，旨在從根本上解決當前面臨的問題。
Solution

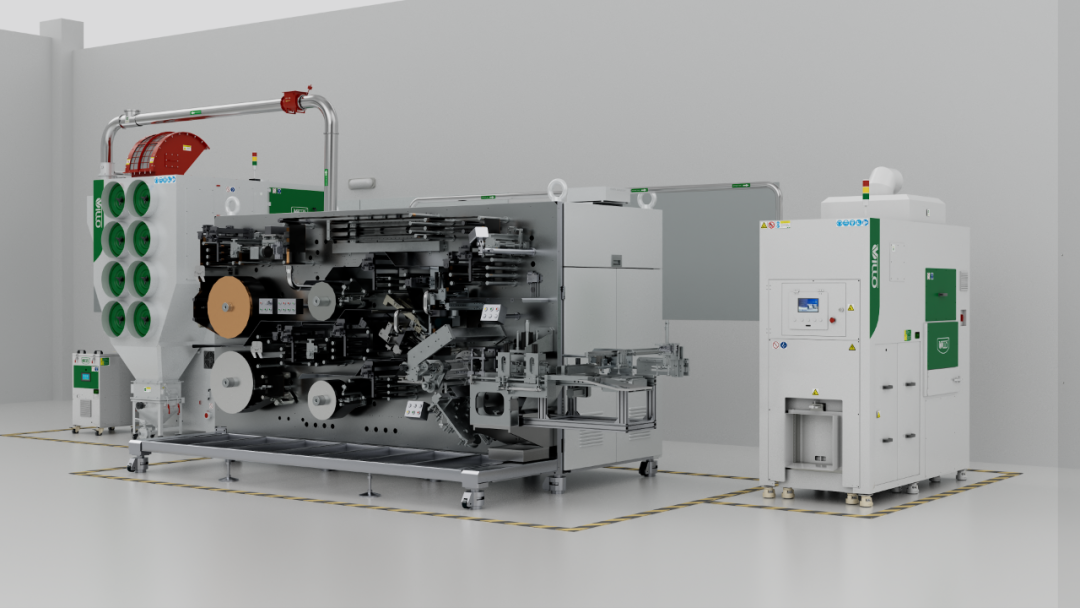

Based on the workshop's actual conditions and the client's core needs, Villo designed an efficient waste collection solution using its patented high-efficiency waste compactor, aimed at fundamentally solving the current problems.
匯樂的廢料壓縮機自帶風機動力源，專為廢料壓縮、收集和除塵而設計。廢料和粉塵進入后被有效分離，廢料被高效收集并壓縮成便于處理的塊狀，粉塵經過兩級過濾后可直接排入車間環境。
Villo's Waste Compactor, equipped with its own fanpower source, is specifically designed for waste collection, compression and dust removal. Upon entry, waste and dust are effectively separated. The waste is then efficiently collected and compressed into
manageable blocks, while the dust undergoes thorough primary and secondary stage filtration, making it suitable for direct discharge (recycled back) into the workshop environment.
通過高效壓縮電缸（高達1:50壓縮比），壓縮后廢料整體成塊，便于回收。
兩級過濾，排風潔凈度可達千級（H13級以上濾芯），回風可直接排入車間。
活動結構采用光柵傳感器監控，保證操作人員安全；大風量設計可最大限度地將粉塵收集到收集箱中，顯著減少框體內的粉塵量，提供更高的使用安全性。
可以24小時工作，減少停機清理時間，提高生產率，同時配備專利設計的收料小車，大大提高廢料回收效率。
配備惰化噴粉器及無焰泄放等防爆設備，大大提高安全性。?

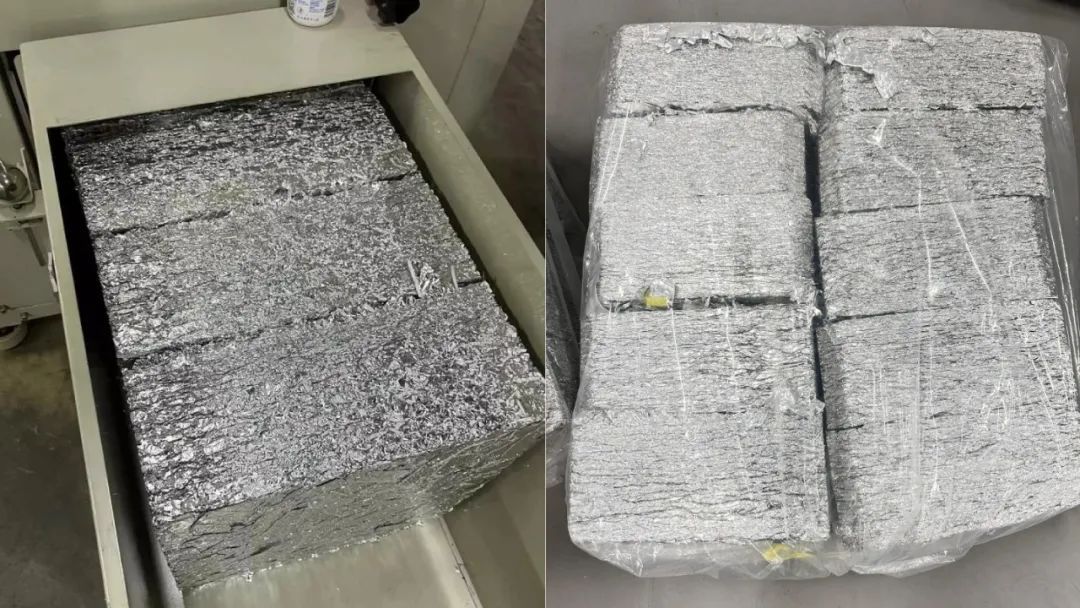

經匯樂高效壓料機壓縮后的廢料塊，便于回收
●?Efficient Compression:
The high-efficiency compression cylinder (with a compression ratio of up to 1:50) compacts the waste into solid blocks, making it easier to recycle.
●?High-Efficiency Filtration:
Two-stage filtration system ensures exhaust cleanliness up to Class 1000 (H13-grade or higher filter), allowing the return air to be directly discharged into the workshop.
●?Safety Protection:
The movable structure is monitored by a grating sensor to ensure operator safety. The high air volume design maximizes dust collection into the collection box, significantly reducing dust levels inside the frame and providing higher operational safety.
●?Continuous Operation and Convenient Recycling:
Capable of 24-hour operation, reducing downtime for cleaning and increasing productivity. Equipped with a patented collection cart design, it greatly improves waste recycling efficiency.
●?Explosion-Proof Option:
Equipped with explosion-proof devices such as an inert powder sprayer and flameless venting, significantly enhancing safety.

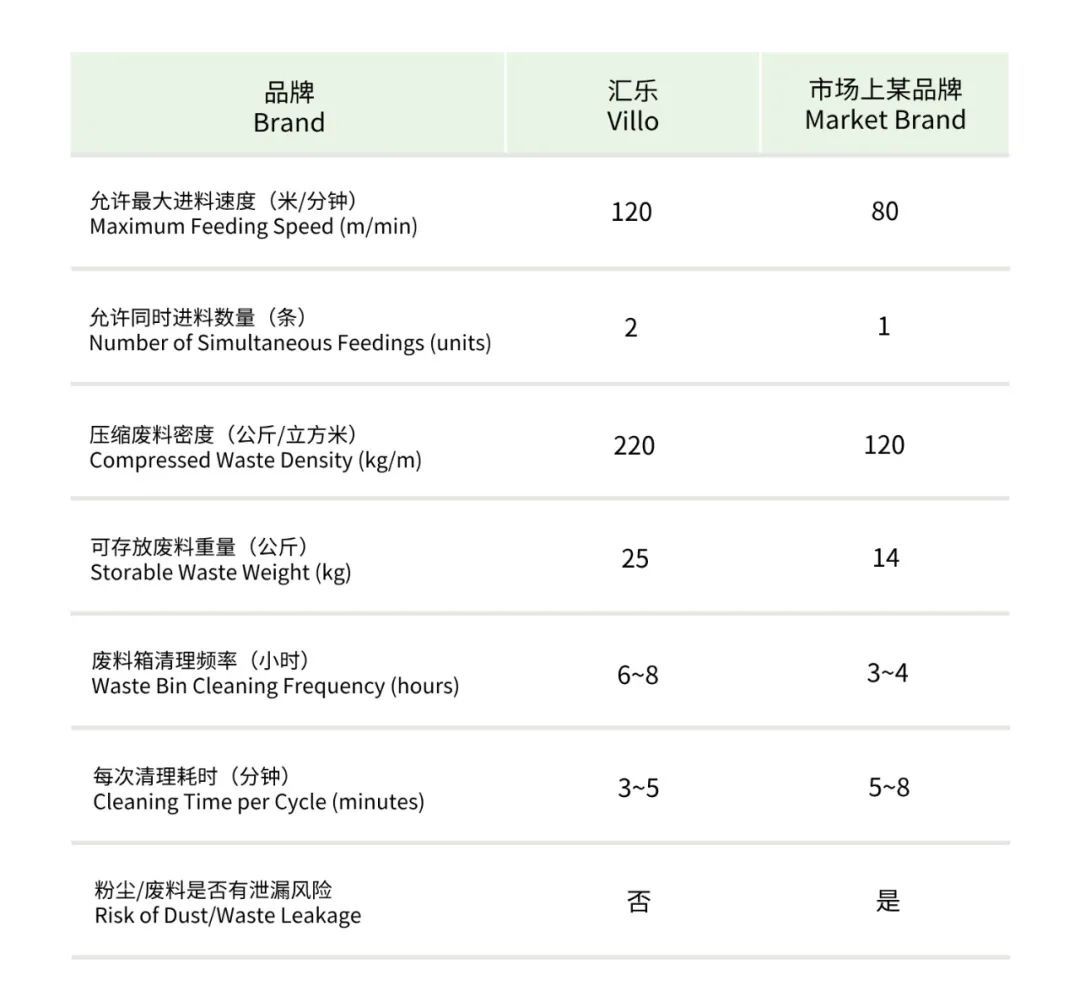

參數對比：匯樂壓料機 vs 市場上某品牌壓料機
Comparison: Villo Waste Compactor vs. Another Market Brand
匯樂的高效壓料機通過優化廢料管理，顯著提升了產線的效率和安全性。系統采用專利電缸壓縮技術，能夠高效收集并壓縮產線上的切割廢料，同時配備收集小車，讓廢料收集更便利，加上智能化控制實現與主生產設備的聯動，確保生產過程自動化運行，大大減少人工操作成本。同時，壓料機可以24小時連續工作，減少了停機清理的時間，有效提高了生產效率。此外，大風量設計最大限度地收集灰塵，顯著降低框體內的粉塵量，提高使用安全性。實際投產后，該系統展現出卓越性能，解決了客戶在廢料管理上的難題，充分滿足了客戶對高效、安全生產的需求。
Villo's high-efficiency waste compactor significantly enhances production line efficiency and safety by optimizing waste management. The system uses patented electric cylinder compression technology to efficiently collect and compress cutting waste from the production line. It is also equipped with a collection trolley for more convenient waste collection. The intelligent control system integrates seamlessly with the main production equipment, ensuring automated operation and greatly reducing labor costs. Additionally, the compactor can operate continuously for 24 hours, minimizing downtime for cleaning and effectively improving productivity. The high airflow design maximizes dust collection, significantly reducing dust levels inside the unit and enhancing operational safety.?
After being put into operation, the system has demonstrated outstanding performance, effectively solving customers' waste management challenges and fully meeting their needs for efficient and safe production.
?
